Air Starters

Category: Ground Support

Description
Reviews (0)

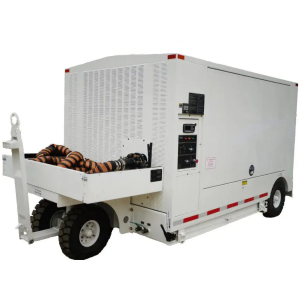

Air Starters（drag）
Project	Performance index
Project	ASU-600-300
equipment power type	power380VAC/50Hz
gas supply flowrate (ppm)	300
max imum air supply pressure (psi)	43
overall dimension of the unit (length, width and height) (mm)	5180×2082×2380
unit weight (kg)	7000
compressor oil Pressure (bar)	——
max imum gas supply temperature is (℃)	≤220
other performance	——
batholith	drag

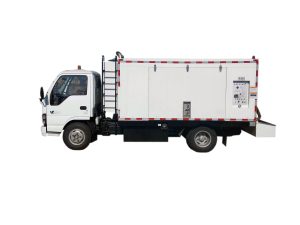

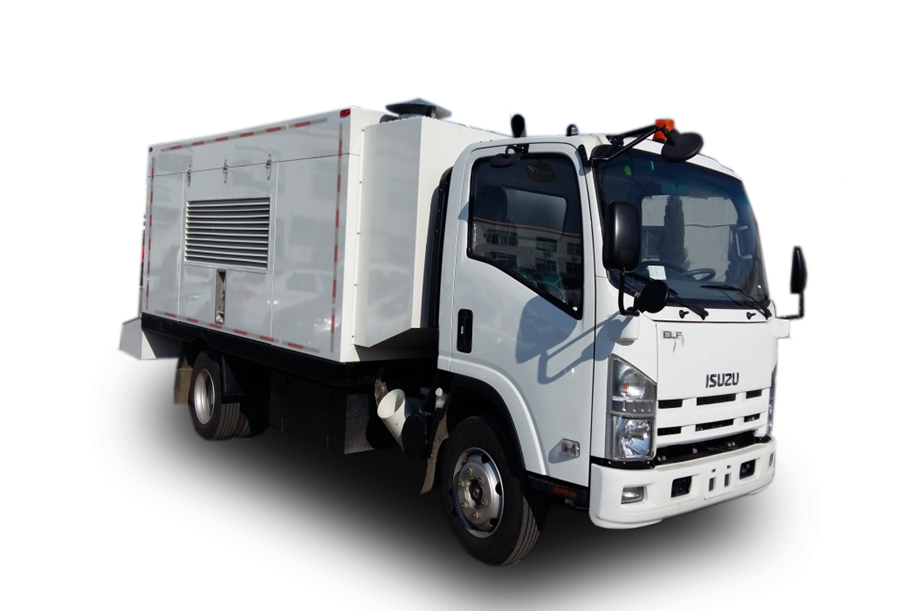

Air Starters(mounted on a vehicle)
Project		Performance index
		PHAS180	PHAS300
equipment power type		combustion engine or power-driven	combustion engine or power-driven
gas supply flowrate (ppm)		180	300
maximum air supply pressure (psi)		43.5	43.5
maximum gas supply temperature is (℃)		≤220	≤220
other performance		——	——
operating engine rated speed(rpm)		1900	1900
engine insitu		SUZU QL truck	SUZU QL truck
maximum driving speed (km/h)		80	80
overall dimension (length,width andheight) (mm)		6250×2100×2680	7450×2280×2900
curbweight (kg)		7000	10000
outer circle diameter of the channelcircle (mm)		13750	16500
