Aircraft Jacks

wide range of innovative axle-jacks covers all of today’s commercial and military aircraft. The consistent modularity allows them to be configured to your specific requirements.

Safety and  quality have the highest priority. That’s why our axle-jacks, regardless of the capacity, are designed for outstanding robustness.

Every product is tested with 10% side load capability and 150% proof load. Even in harsh environmental conditions, our axle-jacks perform their maintenance service on aircraft tires, wheels and brakes.



tripod-jacks facilitate highly cost-effective and efficient maintenance of your aircraft. The consistent modularity allows them to be configured according to your specific requirements. Various configuration options, from the basic to the high-end versions, are available. As an option in combination with our central Electronic Jacking And Levelling control system (EJAL).

The portfolio includes tripod-jacks with a wide range of 2 up to 210 tons. The whole aircraft fleet—narrow-body, wide-body, business jets, regional jet aircraft or helicopters is covered.

Aircraft Jack



Category:

Our jacks are divided into the following 4 structural forms: Hand Carry Jacks(Axle),  Fly-Away Jacks(Axle), Mobile Jacks(Axle),  Tripod Jacks.

Please select your jack model according to the aircraft model and the specific applicable position;

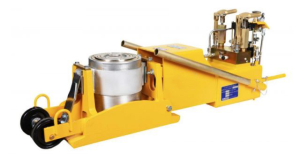

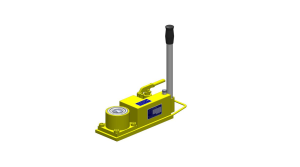

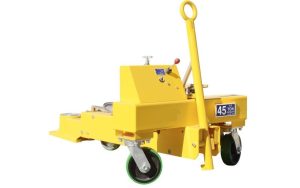

Axle Jacks
P/N TYPICAL AIRCRAFT APPLICATION ‐ APPLICATION TYPIQUE SUR AVION
642S Hand Carry

NOSE LANDING GEAR：A318, A319, A320, A321, ARJ21, ATR42,ATR72, Avro RJ, B717, B737, BAC1-11, BAE146,CL601, CL602, CL604, CL605, CL610, CS100,CS300, D228, D328, Dash 7, Dash 8, DC9,DHC5, DHC6, Embraer Legacy；450/500/600/650,ERJ-135/-145/-170/-175/-190/-195, F27, F28, F50,F100, Falcon 10, Falcon 20, Falcon 50, Falcon 100,Global Express, HS125, Jetstar, Learjet；45, Learjet 75, MD80, MD90, S330,S360, SF340；

MAIN LANDING GEAR：ATR42, ATR72, D228, D328, Dash 7,Dash 8, DHC5, DHC6, Dornier 228/328, Embraer Legacy 450/500/600/650,F27, F50, Falcon 10, Falcon 20, Falcon50, Falcon 100, Jetstar, Learjet 45,Learjet 75, S330, S360, SF340；
215 Hand Carry

NOSE LANDING GEAR：A319, A320, A321, B727, B737-300 thru -900, DC9, MD80, MD90；
 215B Hand Carry

A319, A320, A321, B727, B737-300 thru -900, DC9,MD80, MD90, F900, F2000, F7X, F8X；

MAIN LANDING GEAR：F900, F2000, F7X, F8X；
 648A-1 Hand Carry

NOSE LANDING GEAR：B727, B737-600 thru -800；
652 Hand Carry

NOSE LANDING GEAR：F14*, F/A-18, CH53；

MAIN LANDING GEAR：F4, F14*, F/A-18, CH53；
8772 Hand Carry

NOSE LANDING GEAR：RJ

MAIN LANDING GEAR：RJ
8890-5 Hand Carry

NOSE LANDING GEAR：A319*, A320*, A321*, B717, B737,DC9, MD80, MD90, CRJ, DASH 8,Q400, GLOBAL EXPRESS,CHALLENGER, EMB145/175/190/195；

MAIN LANDING GEAR：CRJ, DASH 8, Q400,CHALLENGER, EMB 145/175/190/195；
8939 Hand Carry

NOSE LANDING GEAR：GIV, G400, G450, GV, G500, G550, G600, G650；

MAIN LANDING GEAR：GIV, G400, G450, GV, G500, G550, G600, G650
GLOBAL EXPRESS 5000, 6000, 7000, 8000；
50P9AR-2 Model

NOSE LANDING GEAR：A319, A320, A321, B727, B737-600 THRU -900, B757；

MAIN LANDING GEAR：A319, A320, A321, B717, B727, B737，B757, DC8, DC9, F100, MD80, MD90；
65P10AR-2 Model

NOSE LANDING GEAR：A300, A310, A330, A340-200/300, A350, B727,
B747, B757, B767, B787, DC10, L1011, MD11；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330, A340-200/300, B707, B717, B720, B727, B737, B747, B757, B767, B787, DC8, DC10,L1011,MD11；
95P10AR-3 Model

NOSE LANDING GEAR：A300, A310, A330, A340, A350-900,A380**, B727, B747, B747-8, B767,B777, B787, L1011；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330；A340, A350-900, A380**, B727, B737, B747,B747-8, B767, B777*, B787, DC8, DC10,
L1011, MD11；
165P10AR-4 Model

NOSE LANDING GEAR：A380-800 / -800F / -900；

MAIN LANDING GEAR：A380-800 / -800F / -900, B787；

NOTE: Use optional 3/4 spherical radius cup for the following aircraft, main landing gear only:A300, A310, A319, A320, A321, A330-300,A340-200 / -300, A340-500 / -600, A350, B767-400ER, B777-200 / -300 / -300ER, B787, MD11, DC10, L1011
832R-2 Model

NOSE LANDING GEAR：A318, A319, A320, A321,B737, B757, C130；

MAIN LANDING GEAR：880, 890, A318, B717, B737-100 to 500, B757, BAC 1-11,BAE146, C130, DC9, F28, F100, HS125, MD80, MD90；
8842-4 Model

NOSE LANDING GEAR：A319, A320, A321, A330,A340-200/-300, A350, B727,B737-300 THRU -900, B757, B767, B787；

MAIN LANDING GEAR：A319, A320, A321,B717, B727, B737, B757, DC9,
E190, E195, F100, MD80, MD90；
8899-1 Model

NOSE LANDING GEAR：A300, A310, A330, A340, A350-900, A380**, B727, B747, B747-8, B767, B777, B787, L10111；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330, A340, A350-900, A380**, B727, B737, B747, B747-8, B767, B777*, B787, DC8, DC10, L1011, MD11；
8900-3 Model

NOSE LANDING GEAR：A300, A310, A330, A340, A350, B727, B747, B757, B767, B787, DC10, L1011, MD11；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330 ，A340, B707, B717, B720, B727, B737 ，B747, B757, B767, B787, DC8, DC10, L1011, MD11；
8915-1 Model

NOSE LANDING GEAR：A319, A320, A321, B727, B737-600 THRU -900, B757；

MAIN LANDING GEAR：A319, A320, A321, B717, B727, B737，B757, DC8, DC9, F100, MD80, MD90；
8714-2 Fly-Away

NOSE LANDING GEAR：A300, A310, A330, A340, B707, B720，B727, B747, B757, B767, B787, DC10，L1011, MD11；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330，A340, B707, B717, B720, B727, B737，B747, B757, B767, B787, DC8, DC9，DC10, L1011, MD11, MD80, MD90；
8782-1 Fly-Away

NOSE LANDING GEAR：A318, A319, A320, A321,B737, B757, C130；

MAIN LANDING GEAR：880, 890, A318, A319, B717, B737, B757, BAC 1-11,
BAE146, C130, DC9, F28, F100, HS125, MD80, MD90；
8919-3 Fly-Away

NOSE LANDING GEAR：A318, A319, A320, A321, B727, B737, B757, C130；

MAIN LANDING GEAR：A318, A319, A320, A321, B717, B727, B737, B757,
C130, DC9, E190, E195, F100, MD80, MD90；
8920-3 Fly-Away

NOSE LANDING GEAR：A300, A310, A330, A340, A350, A380**,B727, B747, B747-8, B767, B777, B787, L1011；

MAIN LANDING GEAR：A300, A310, A319, A320, A321, A330，A340, A350, A380**, B727, B737, B747,B747-8, B767, B777*, B787, DC8, DC10, L1011, MD11；

*Two 8920 jacks are required for this application
**Specify 1 ¼” Female Spherical Radius Ship Adapter p/n 885520 and at reduced aircraft axle jack load (less than 95 tons) for this application
8966-7 Fly-Away

NOSE LANDING GEAR：A319*, A320*, A321*, B717, B737, B757, DC9, MD80, MD90, CRJ, DASH 8, Q400, GLOBAL EXPRESS, CHALLENGER, EMB 145/175/190/195；

MAIN LANDING GEAR：CRJ, DASH 8, Q400, CHALLENGER, EMB145/175/190/195；
CP07 Hand Carry

NOSE LANDING GEAR：A319/A320/A321 (N) (1F) (2F) (R）；B737‐7/‐8/‐9/‐10 MAX (N) (1F) (2F) (R)；B737 nex. gen. all types (N) (1F) (2F) (R)；B737 classic (N) (1F) (2F) (R)；F100 (N), DC9 10/50 (N), HS146 (N)；
CP13 Hand Carry

NOSE LANDING GEAR：ATR42   (N) (1F) (2F) (R) ‐ ATR72   (N) (1F) (2F) (R)
B727 (N) (1F) (2F) (R) ‐ B737 (N) (1F) (2F) (R)；DC9 10/50 (N) ‐ DC9 80 (N)
；A320 (N) (1F)；F100   (N) (1F) (2F) (R)  ；55J‐100 (N)；

MAIN LANDING GEAR：ATR42   (N) (1F) (2F) (R) ‐ ATR72   (N) (1F) (2F) (R)；
CR05 Hand Carry

NOSE LANDING GEAR：A300 (N) (1F), A310 (N) (1F), A320 twin wheel Family (N)；B707 (N) (1F), B727 (N) (1F) (2F), B747 (N) (1F) (2F) (R), B767 (N)
L1011 (N) (1F)；

MAIN LANDING GEAR：A300 (N) (1F) (2F), A310 (N) (1F) (2F), A320 twin wheel Family (N) (1F) (2F) B707 (N), B727 (N) (1F), B737 (N) (1F), B747 (N) (1F), B757 (N) (1F), B767 (N) (1F)；DC8 (N) (1F), DC9 10/50 (N)；
AJ45 Model

NOSE LANDING GEAR：A300, A310 (N, 1F)；A320 family CEO (A318, A319, A320, A321) +NEO (N)；A330, A340-200-300 (N, 1F)；B707 (N, 1F)
B727 (N, 1F, 2F)；B737-7-8-9-10 MAX (N)；B737 NG all types (N, 1F), & CL all types (N)；B757 (N)；B767 (N, 1F)；B777 (N, 1F)；B787-8-9 (N, 1F)
E170, E175, E190, E195 (N)；L1011 (N, 1F)；ARJ21 (N, 1F)；

MAIN LANDING GEAR：A300, A310 (N, 1F, 2F)；A320 family CEO (A318, A319, A320, A321)+NEO (N, 1F, 2F)；B707 (N, 1F)；B717 (N)；B727 (N, 1F, 2F)；B737-7-8-9-10 MAX (N, 1F, 2F)；B737-7-8-9-10 MAX (with tire size H44.5 x 16.5R21/30PR) (N, 1F, 2F) B737 NG all types & CL all types (N, 1F, 2F)；B757 (N, 1F)；E170, E175, E190, E195 (N, 1F, 2F)；MD80 (N), MD90 (N)；ARJ21 (N, 1F, 2F)；
AJ60 Model

NOSE LANDING GEAR：‐ A300, A310； A320 family CEO (A318, A319, A320, A321) + NEO (N)；A330, A340‐200‐300 (N), A340‐500‐600 (N, 1F, 2F)；A350‐900‐1000 (N, 1F)；B707 (N)；B727 (N, 1F, 2F)；B747 (N, 1F, 2F, R)；B757 (N)；B767 (N)；B777 (N)；B787‐8‐9 (N)L1011 (N)；

MAIN LANDING GEAR：‐ A300, A310 (N, 1F)；A320 family CEO (A318, A319, A320, A321) + NEO (N, 1F)；A330, A340‐200/300 (N, 1F)；B707 (N)
B727 (N, 1F)；B737 NG, all types & B737 CL, all types (N, 1F)；B747 (N)
B757 (N)；B767 (N)；B787‐8‐9 (N, 1F)；L1011 (N, 1F)；MD11 (N), DC10 (N)；

CENTER LANDING GEAR:  A340‐200/300/500/600 (N, 1F)；
AJ90 Model

MAIN LANDING GEAR：A300 (N)；A330 (N), A340‐200‐300‐500‐600 (N)
A350‐900‐1000 (N, 1F)；B727 (N, 1F)；B747 (N, 1F, 2F, R)； B757 (N)；B767 (N)；B777 (N, 1F)；

MAIN LANDING GEAR：‐ A300, A310 (N, 1F)；A320 family CEO (A318, A319, A320, A321) + NEO (N, 1F)；A330, A340‐200‐300‐500‐600 (N, 1F)  ；A350‐900 (N, 1F)；B707 (N)；B727 (N, 1F)；B737‐300‐900 (N)；B747 (N)；B757 (N)；B767 (N)；B777 (N)；B787‐8‐9 (N, 1F)；L1011 (N)；MD80 (N), MD90 (N)；

CENTER LANDING GEAR: A340‐200‐300‐500‐600 (N, 1F)；

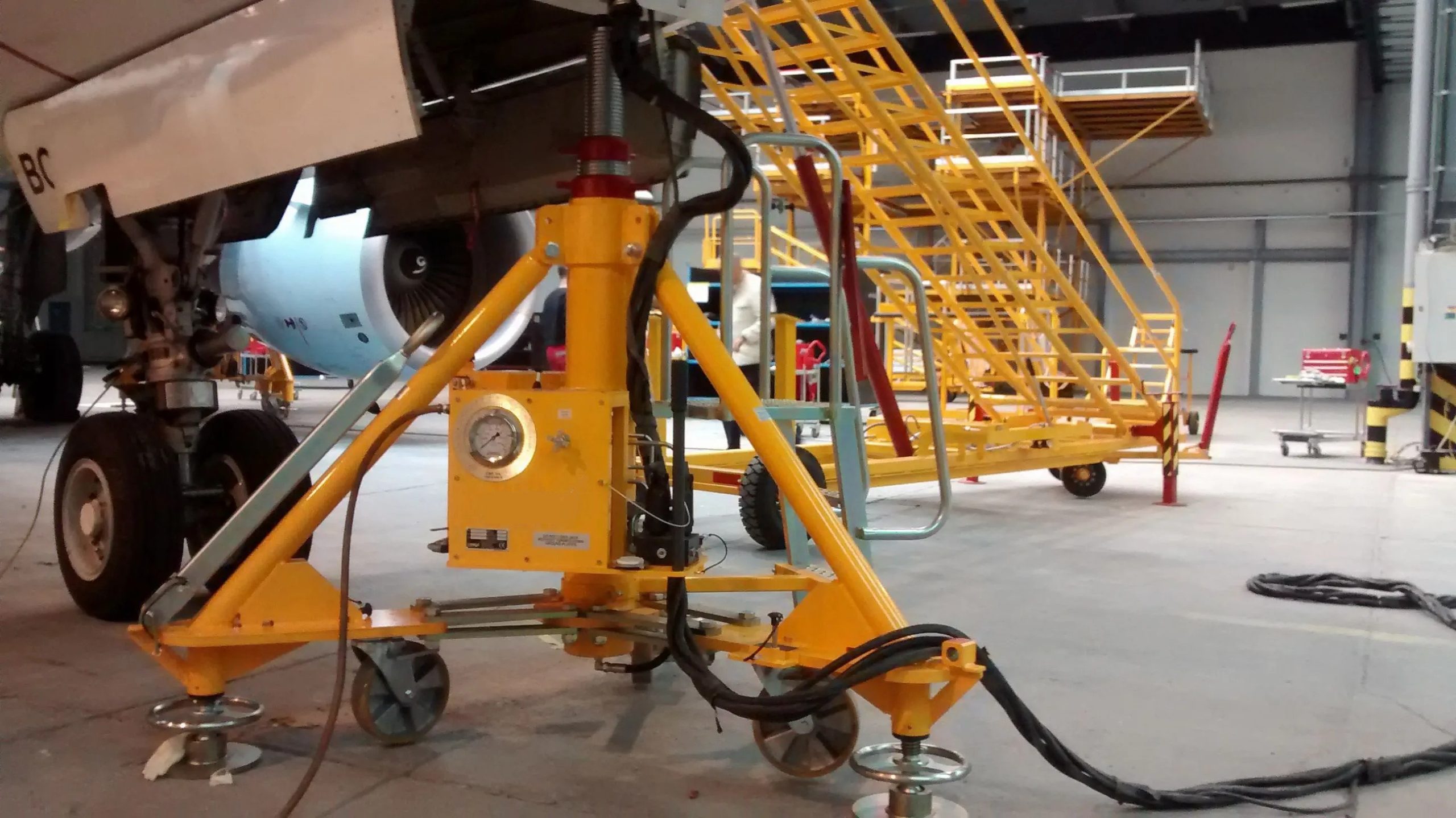

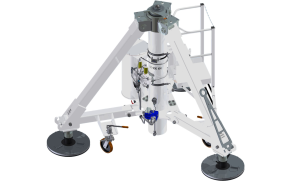

Tripod Jacks
P/N TYPICAL AIRCRAFT APPLICATION ‐ APPLICATION TYPIQUE SUR AVION
8864 Forward Fuselage: A300, A310, A330, A340, A350-900；B747, B747-8, B757, B767, B777, B787；DC10, MD11, L1011；
703-1 Mid Wing:B747, B747SP, B767
706A Wing Tip:B747 /B747-8
714A-2 FUSELAGE-FUSELAGE:A318**, A319**, A320**, A321**；B737-100 thru -900；
714A with 36” Leg Ext. Kit
Aft Fuselage:B737, MRJ*
WINGS-AILES: ATR42, ATR72, Dash 7, Dash 8, DHC5；
718B-2 Forward Fuselage:B707, B720, B737; BAE146, C SERIES, DC8,RRJ95, SSJ100
Aft Fuselage:BAE146, B727,MD80, MD90；
WINGS-AILES:328, ARJ21, BAE146,F28, GLOBAL EXPRESS, RJ170/175；
725A-1 FUSELAGE-FUSELAGE:B707, B720, B737,DC8, F100；
Aft Fuselage:B727,DC9 w/o stair,MD80, MD90；
WINGS-AILES:BAE146,B737-100 thru -500,DC9, F28, F100；
733A-3 Forward Fuselage：A300***, A310***, A330***, A340***, A350***,B747, B757, B767, B777**/***, B787, DC10, MD11, L1011；
WINGS-AILES:A318*, A319*, A320*, A321*, ATR42,ATR72, C130, C SERIES；
*Specify 1-1/4″ Male Spherical Radius Ship Adapter (P/N 873120)
**Specify Extended 3/4″ Female Spherical Radius Ship Adapter (P/N 73318-2)
***Suitable for Shoring and Gear Swing only
759A-1 WINGS-AILES：B707, B720, B727, B737, DC8, DC9, F100, MD80, MD90；
761-2 Aft Fuselage：A330*, A340*, A350*, B747SP, B777**, B787***；
*Use 3/4″ Female Spherical Radius Ship Adapter for this application
**Use 1 1/4″ Male Spherical Radius Ship Adapter for this application
***For roll-under clearance, oleos may have to be extended
7120A-2 FUSELAGE-FUSELAGE:DC8, F100
Aft Fuselage:DC9 w/o stair
WINGS-AILES:DC9, ERJ170, ERJ175, F100
7120B-1 FUSELAGE-FUSELAGE:C130*, DC8
Aft Fuselage:DC9 w/o stair
WINGS-AILES:DC9
7120E FUSELAGE-FUSELAGE:C130*, DC8
Aft Fuselage:DC9 w/o stair
WINGS-AILES:DC9
7210B-2 FUSELAGE-FUSELAGE:ARJ21, ATR42, ATR72, B717, Bandeirante, Brasila, C601,
C602, CRJ, D228, D328, Dash 7, Dash 8, DC9, DHC5, DHC6, Diamond, ERJ-135/145, F27, F50, Falcon 10, Falcon 20, Falcon 50,Falcon 100, Learjet, MD80, MD90, S330, S360, SF340；
WINGS-AILES:Bandeirante, Brasila, D228, D328,Diamond, Falcon 10, Falcon 20, Falcon50, Falcon 100, Learjet, S330, S360；
7212B-1 FUSELAGE-FUSELAGE:B717, DC9, Jetstar,MD80, MD90；
Aft Fuselage:ATR42, ATR72, B717,DC9 with aft stair；
WINGS-AILES:C601, C602, CRJ, Jetstar,Falcon 10, Falcon 20,Falcon 50, Falcon 100；
7215B-2 Forward Fuselage：ERJ-135/145
Aft Fuselage:ARJ21, B717, DC9, MD80/90
WINGS-AILES:ERJ-135/145
7225A-1 FUSELAGE-FUSELAGE:BAC1-11
WINGS-AILES:BAC1-11, GI, GII, GIII, GIV,GV, GVI, GVII, SF340；
Mid Wing:BAC1-11
7235A-2 FUSELAGE-FUSELAGE:B727, B737, DC8；
Aft Fuselage:B717, B727, DC9,MD80, MD90；
WINGS-AILES:B717, B737, DC9, F28,F100, MD80, MD90；
8487A-1 Aft Fuselage:A310
8487A with 28” Leg Extension Kit A300
8704-1 Aft Fuselage:B757*
*Jack Suitable for Standard Gear Swing.
Specify Extension Kit p/n 870450 for Oleo Piston Removal
8721A-4 FUSELAGE-FUSELAGE:A319, A320, A321, A321NEO-LR, B707, B720, B727；
Aft Fuselage:ERJ170, ERJ175, ERJ190, ERJ190-E2, ERJ195；
8722A-3 Aft Fuselage:A319, A320, A321, A321NEO-LR, B757*
*Specify with external relief valve for this application
8730B-1 C17 Forward Fuselage (2 ea), Mid Fuselage (2 ea) and Aft Fuselage (2 ea)
8760-1 FUSELAGE-FUSELAGE:A300, A310, A330, A340, A350-900, A350-1000, B747, B757, B767, B777, B787, DC10, MD11, L1011；
8761-3 Aft Fuselage:A300, A330, A340, A350-900；
8802-1 Mid Wing:B747, B767, B777
8803A-1 Aft FuselageA330
Mid Wing:B777, B787
Wing Tip:B747, B777, B787
8810B-5 FUSELAGE-FUSELAGE:A300*, A310*, A330*, A340*,A350, B747*, B757, B767, B777；
Aft Fuselage:A318, A319, A320, A321, B737；
WINGS-AILES:A321NEO-LR, Q400；
For roll-under clearance, oleos may have to be extended
8811B Wing or Body：
8811B with Leg Kit 1 A319, A320, A321, B747, B747-8, B757*, B767, B777, B787；
8811B with Leg Kit 2 A300, A310, DC10, MD11, L1011；
8811B with Leg Kit 3 A330, A340, A350；
8826-3 Aft Fuselage:B727
WINGS-AILES:BAE146, B727, B737, DC9, ERJ190-E2,F100, MD80, MD90；
8850-2 Aft Fuselage:B767-200 thru -400, B787
Wing:C130*
8857-2 FUSELAGE-FUSELAGE:F16
Aft Fuselage：F16*8857 with 18” Leg Ext. Kit
Longeron Removal：F16*
8863-3 Universal Wing or Body
A300, A310, A318, A319, A320, A321, A330, A340, A350-900；
B747, B747-8, B757*, B767, B777, B787, DC10, MD11, L1011；
8882-1 Nose, Wing and Tail Jack Points
A318, A319, A320, A321, B737-100 thru -900；
8901-2 NOSE-NEZ:A300/310;A318/319/320/321;A330/340 (NOTE 5) ;A350 (NOTE 6)；
B737-100 to -900ER;B757-200/-300;B767-200TO -400ER;B787 (NOTE 2);B777(NOTE 3); MD10/MD11 (NOTE 4)；FUSELAGE-FUSELAGE:767-200 TO -400ER;B787 (NOTE 2)；WINGS-AILES:A300/310; A318/319/320/321; A330/340 (NOTE 5); A350 (NOTE 6) ;B737-100 to -900ER; B757-200/-300 B777 (NOTE 3); MD10/MD11 (NOTE 4) MD80/MD90 (NOTE 1)；TAIL-QUEUE:A300/310; A318/319/320/321;A330/340 (NOTE 5); A350 (NOTE 6); B737-100 to -900ER; B757-200/-300; B767-200 TO -400ER; B787 (NOTE 2);B777 (NOTE 3); MD80/MD90 (NOTE 1)；
8918-1 Universal Tail or Aft
A300*, A310*, A330*, A340*, A350-900*, B747, B747-8, B747SP, B767, B777, B787
*Specify 3/4” Female Spherical Radius Ship Adapter p/n 873009 for this Application；
8923-1 FUSELAGE-FUSELAGE:A318, A319, A320, A321, B737
TAIL-QUEUE:E1, E2
8924-2 Aft Fuselage:A318, A319, A320, A321, B737
WINGS-AILES:Q400
8941A-2 WINGS-AILES:GIV, G400, G450, GV, G500, G550, G600, G650, Global Express 5000/6000/7000/8000；
8942A-2 NOSE-NEZ:GIV, G400, G450, GV, G500, G550, G600, G650, Global Express 5000/6000/7000/8000；
8955-2 Nose & Wing
Challenger 300/350/605/850 (200)
8962-1 Nose & Wing
Embraer Legacy 450/500/600/650
8964 Nose & Wing
Dassault F900, F2000, F7X, F8X
8970-2 WINGS-AILES:B737, A320
8971-2 NOSE-NEZ:A318, A319, A320, A321, A319neo, A320neo, A321neo
TAIL-QUEUE:B737-100 to -900, B737-200C, B737-7/-8/-9 MAX
12314S-1 FUSELAGE-FUSELAGE:F27, H1, H53,SH60, UH60
Aft Fuselage:H1, H2, H46,SH60, UH60
WINGS-AILES:DHC6, H2, H53
705C&745B  TAIL-QUEUE:B747 Freighter/Combi and 747-8F
AS09 SHORING-ETAYAGE:A320 family CEO(318-319-320-321)+NEO
AS10 SHORING-ETAYAGE:A320 family CEO(318-319-320-321)+NEO
AS50 TAIL-QUEUE:A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2)
AS51 NOSE-NEZ:B737-100~900+MAX(1)(2)
AS52 TAIL-QUEUE:‐ A330‐200‐300 (1) (2) ; A340‐200‐300‐500‐600 (1) (2) ;A350‐900‐1000 (1) (2)；
AS53 NOSE-NEZ:B787-8-9(1)(2)
AS60 SHORING-ETAYAGE:A330/A340
AS61 SHORING-ETAYAGE:A320 family CEO(318-319-320-321)+NEO
TJ16 NOSE-NEZ:H160 (1) (2), H175 (1) (2)
TJ17 TAIL-QUEUE:H160 (1) (2), H175 (1) (2)
TJ20 NOSE-NEZ:A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2)；
TJ21 WINGS-AILES:A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2) Comac C919；
TJ30 TAIL-QUEUE:B737-100~900+MAX(1)(2)
TJ31 WINGS-AILES:B737-100~900+MAX(1)(2);BREGUET ATLANTIC(1)(2)；
TJ40 NOSE ‐ NEZ：A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2);B737-100~900+MAX(1)(2);Comac C919；
TJ41 NOSE-NEZ:A330(1) A340(1) A350(1) Beluga XL(1)
TAIL-QUEUE:A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2);B737-100~900+MAX(1)(2)
TJ42 TAIL-QUEUE:A320 family CEO + NEO (A318‐A319‐A320‐A321) (1) (2);B737-100~900+MAX(1)(2)；
TJ50 NOSE-NEZ:A300(1)(2)A310(1)(2):A330‐200‐300 (1) (2) ;A340‐200‐300‐500‐600 (1) (2) ;A350‐900‐1000 (1) (2) :B787‐8‐9 (1) (2)；
TJ51 WINGS-AILES:A300 (1)(2),A310(1)(2);A330‐200‐300(1)(2);A340‐200‐300‐500‐600 (1) (2);A350‐900‐1000 (1) (2)；
TJ52 NOSE-NEZ:A350‐900‐1000 (1) (2)
TJ60 NOSE-NEZ:A300 (1) (2), A310 (1) (2),A330‐200‐300 (1)(2),A340‐200‐300‐500‐600  (1) (2), A350‐900‐1000 (1) (2),B747 (1) (2),B757 (1) (2),B767 (1) (2),B777 (1) (2),B787 (1) (2)；
WINGS-AILES:AB767(1)(2)；
TJ61 WINGS-AILES:A300 (1) (2), A310 (1) (2),A330‐200‐300 (1) (2),A340‐200‐300‐500‐600  (1) (2),A350‐900‐1000 (1) (2),B747 (1) (2),B747 (1) (2),B757 (1) (2),B767 (1) (2),B777 (1) (2),B787 (1) (2)；
TJ62 TAIL-QUEUE:A300 (1) (2), A310 (1) (2),A330‐200‐300 (1) (2),A340‐200‐300‐500‐600  (1) (2),A350‐900‐1000 (1) (2),B747 (1) (2),B777 (1) (2),B787 (1) (2)；
TJ80 TAIL-QUEUE:B787-8-9 (1) (2)
TJ81 WINGS-AILES:B787-8-9 (1) (2)
TR19 NOSE-NEZ:ATR42(1) ATR72(1);F27(1)
TR20 WINGS-AILES:ATR42(1) ATR72(1) F27(1) F50
TAIL-QUEUE:A320(1) B707(1) B737(1)
TR29 NOSE-NEZ:DC-9-10/50(1) N262(1) FOUGA(1) F406 CARAVAN (1)；
FUSELAGE-FUSELAGE:N262(1)；
WINGS-AILES:FOUGA(1) F406 CARAVAN (1)；
TS42 NOSE-NEZ:STEMME S15
WINGS-AILES:STEMME S15
TS42-50 NOSE-NEZ:PATROLLER
WINGS-AILES:PATROLLER
TS43 NOSE-NEZ:FALCON 50(1)
WINGS-AILES:FALCON 50(1)





询价

48小时内得到回复



询价





Reviews

There are no reviews yet.

Be the first to review “Aircraft Jacks”

您的邮箱地址不会被公开。 必填项已用 * 标注

Related products

zh_CNChinese
en_USEnglish zh_CNChinese
