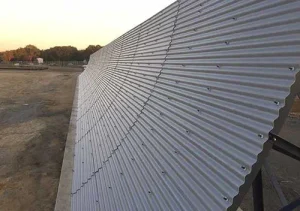

Thedeflectors and Noise Reduction U–shaped Facility for Aircraft jte blast

Apply to all series narrow-body aircraft of A319/A320/A321/B737-300/B737-400/B737 -500/B737NG/B757 and all series wide-body aircraft of A330/A340/A350/A380/B747/B767/B777/B787.



Functional Characteristics：

1.With flow guiding function, the airflow of 90~95% can be

directed into the sky,

2.With noise reduction function, double layers micro perforated

plates structure are    adopted, can effectively reduce noise by 35~45 decibels.

3.The U-shaped facility’s outer side of three sides are the safe area, the vehicle can travel normally and the staff can stand and walk in the safe area.

4.It can be tested in all wind directions, and the test run of the  aircraft is not limited by wind direction. The facility is small in size., for narrow-body aircraft facility covers an area  of:1160 square meters, for wide-body aircraft facility covers an area of:3514 square meters.

5.The facility is small in size. For narrow-body aircraft facility covers an area of:1160 square meters; For wide-body aircraft facility covers an area of:3514 square meters.

6.Equipped with an electronic control service system . It can    display the data of measurement time, number of tests, wind speed and direction, airport, aircraft ID etc . Carry out maintenance in time according to data feedback

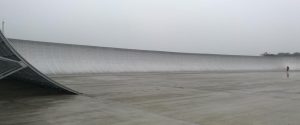

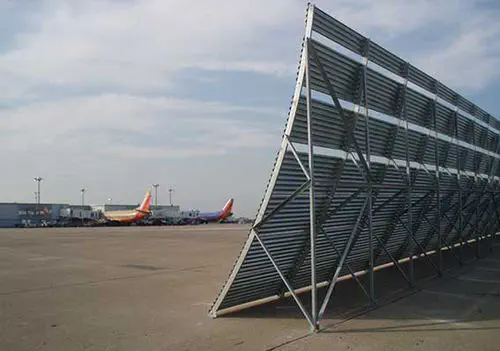

The deflectors and Noise Reduction Fan–shaped Facility for Aircraft jte blast

Apply to all series narrow-body aircraft of A319/A320/A321/B737-300/B737-400/B737 -500/B737NG/B757 and all series wide-body aircraft of A330/A340/A350/A380/B747/B767/B777/B787.



Functional Characteristics：

1.With flow guiding function, the airflow of 80~90% can be directed into the sky;

2.With noise reduction function, double layers micro perforated plates structure are adopted, can effectively reduce noise by 30~40 decibels;

3.The facility is small in size., for narrow-body aircraft facility covers an area of:632square meters,for wide-body aircraft facility covers an area of:1196 square meters;

4.Equipped with an electronic control service system . It can display the data of measurement time, number of tests, wind speed and direction, airport  aircraft ID etc . Carry out maintenance in time according to data feedback.
