Nose Docking

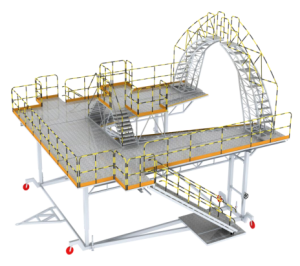

Unitary Nose Dock

It consists of the main platform，windshield platform, radome platform and back rack. Its working area covers the windshield, radome,  front passenger door and top of nose .









Unitary Double–deck Nose Dock

It consists of the main platform, windshield platform, radome platform and the second floor. Its working area covers the windshield, radome, front passenger door and top of nose.

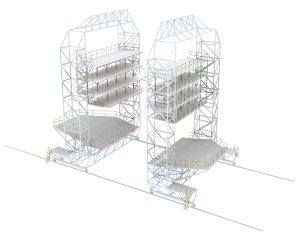

Left and Right Type Double-deck Nose Dock

The complete set of nose dock consists of this equipment symmetrically. Its working area covers windshield, radome, front passenger door and top of nose.







Fuselage Docking

One Layer Fuselage Dock

It consists of fuselage platform, belly platform, spanning wing cross structure and back rack. Its working area covers fuselage,belly and back of the fuselage.















Double–deck Fuselage Dock

It consists of fuselage platform, belly platform, spanning wing cross structure and the second floor. Its working area covers fuselage, belly and back of the fuselage.











Track Fuselage Dock

It consists of the main platform, use ground rail to walk away from and close to aircraft. Its working area covers front fuselage to rear fuselage, fuselage of upper wing.







Suspended Fuselage Dock

It consists of the main platform, suspension rails are adopted. Its working area covers front fuselage to rear fuselage, fuselage of upper wing.







Tail Docking

Integral Moving Overhanging Type Tail Dock

It consists of horizontal tail platform , overhanging type platform of vertical fin , Its working area covers horizontal tail, vertical fin.













Stationary Tail Dock

It consists of horizontal tail platform, APU platform, vertical fin platform. Its working area covers the rear passenger door, horizontal tail, APU, vertical fin.











Integral Ground Moving Tail Dock

It consists of horizontal tail platform, APU platform, vertical fin platform. Its working area covers the rear passenger door,horizontal tail, APU, vertical fin.













Suspended Vertical Fin Dock

It consists of the main platform, suspension rails are adopted. Its working area covers vertical fin.









Portal-type Frame type Vertical Fin Dock

It consists of steel platform, front and rear portal-type frame, the top beam and vertical  tail dock. This set of equipment is suitable for not carrying vertical tail dock hangar, the aircraft adopts tail in. Its working area covers vertical fin.











Track Vertical Fin Dock

It consists of horizontal tail platform, portal-type frame, rail and vertical fin platform, the aircraft adopts tail in. Its working area covers vertical fin and horizontal tail.







Wing Docking

It consists of its outboard platform, inner platform, wingtip platform, the inner engine  platform, and landing gear platform. The maintenance range of wing dock covers  wingtips, wings, flaps, engine inside, landing gear. The whole wing dock is fully covered, and the jack can be avoided when using which meets the maintenance, painting and sanding requirements of wing .





Wing’s Outboard Platform(Contain Wingtip Platform)

It consists of the main platform and wingtip platform. Its working area covers outside of the wings and wingtips.











Wing‘s Inner Platform

It consists of the main platform. Its working area covers the outer side of the engine    to the middle of the wing.
