Sludge Drying Equipment



Industry Leading Incineration Sludge Drying Equipment



Highlight:

industry sludge dryer, industry sludge drying equipment, customized sludge dryer

reatment:	Drying	Voltage:	380V/220V
Type Of Waste:	Sludge	Transport Package:	Container, Bulk Cargo
Trademark:	SINOASIA	HS Code:	8401401000
Factory Establishment:	2013	Feeding Type:	Pumping
Emission Standard:	European Standard	Specification:	Customized
Origin:	China	Production Capacity:	100sets/Year



Production Description:

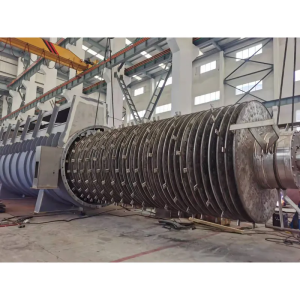

The disc dryer can not only heat the shell, but also heat the internal disc, which greatly increases the drying area, improves the thermal efficiency and ensures the full drying of the material. The dryer is composed of a horizontal housing and a rotor with steam heating, the shaft is mounted with a plurality of heating discs, the disc is equipped with adjustable Angle scraper. When working, the material can be heated, and the material in the heating can be pushed along the direction of the discharge end. The steam distribution device inside the rotating shaft can be evenly distributed to each heating disc. The steam flows in the disc on both sides of the disc, so that the heating disc maintains a constant temperature, and the condensate is discharged through the rotating joint at the shaft end.



With the rotation of the spindle, the material is fully stirred and mixed under the combined action of the scraper and the disk to increase the maximum heat exchange area, and the exhaust gas generated after heating is discharged from the top of the shell, and the weak vacuum degree is kept in the pipeline to prevent the steam from leaking and avoid inhaling too much cold air. The product is widely used in the drying of fish meal, bone meal, dyes, pigments, sludge, chemicals, pesticides and other powder products.

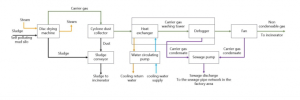

Process Diagram:



Production Features:

• Handling capacity :30-200t/d
• Deal with various forms of hazardous waste, like solid, semi-solid, liquid ,colloid, gas etc.
• Patent for high chlorine, high sulfur and other hazardous waste treatment
• Flexible use of different processes according to regional emission

requirements

• Full utilization of waste heat
• Super smart medical waste feeding system
• Whole process monitoring system for medical waste





Main technical parameters of product:



Model	ZDYP-10	ZDYP-25	ZDYP-50	ZDYP-65	ZDYP-90	ZDYP-100	ZDYP-125	ZDYP-150
Production Capacity(t/d)	10	25	50	65	90	100	125	150
Evaporation capacity(kg/h)	320	800	1600	2000	2800	3200	4000	4800
Heating area(square meter)	50	100	200	250	350	400	500	600
Steam pressure(MPa)	≤1.0
Steam temperature(ºC)	≤185
Rotating speed(r.p.m)	1-10
Motor power(kw)	30	55	75	90	90	110	132	160

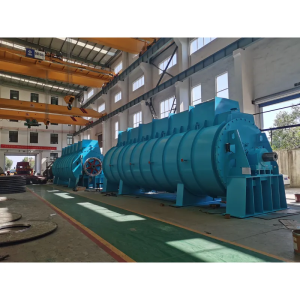

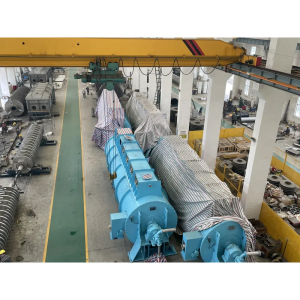

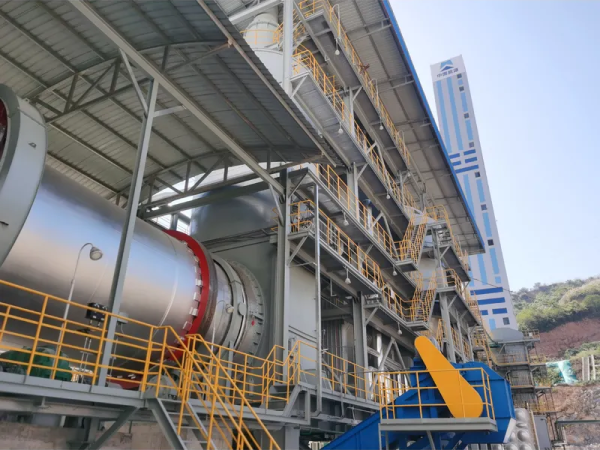

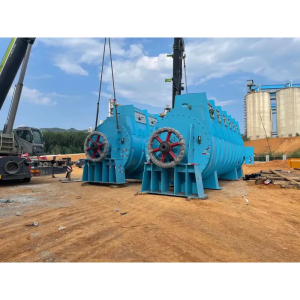

Product Show In production :
