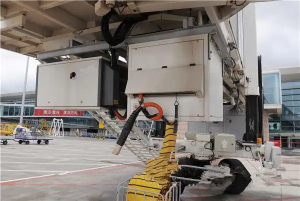

Ground Power Units(Hanging type or ground) |
||||
| Project | Performance index | |||
| WG100PT | WG140PT | WG180PT | ||
| operation ambient temperature (℃) | comply with the requirements | comply with the requirements | comply with the requirements | |
| weight (kg) | 480 | 828 | 1014 | |
| overall dimension (LxWxH) (mm) | 1000×900×600 | 1600×1150×700 | 1600×1150×700 | |
| noise (dB(A)) | ＜65 | ＜65 | ＜65 | |
| levels ofprotection | comply with the requirements | comply with the requirements | comply with the requirements | |
| ACmain parameters and performance dates | rated voltage (V) | 115/200 | 115/200 | 115/200 |
| rated frequency (Hz) | 400 | 400 | 400 | |
| (A)<br/>rated current (A) | 261 | 348 | 521 | |
| (kVA)<br/>rate d power (kVA) | 90 | 120 | 180 | |
| overload capacity | 125 %，10.33min, 150 %，10min, 200%，34. 08s, 300%，10. 42s, 400%,1. 028s |
125%，304s 150%，11. 28s 200 %，2. 26s |
125%，302s 150 %，10. 5s 200 %，2. 29s |
|
| DCmain parameters and performance datas | rated current (A) | —— | —— | —— |
| contin uous working current (A) | —— | —— | —— | |
| 5-min overloadcurrent (A) | —— | —— | —— | |
| rated power (kW) | —— | —— | —— | |
| rated voltage (V) | —— | —— | —— | |
| other performance | input frequency (Hz) | 40~60 | 40~60 | 40~60 |
| input power factor | 0.99 | 0.99 | 0.99 | |
| input efficiency (%) | 94 | 93.16 | 93.45 | |
| input voltage (V) | 380×(1±15 %)V) V duration; 380× (1 20%) V short time. |
380×(1±15 %)V) V duration; 380× (1 20%) V short time. |
380×(1±15 %)V) V duration; 380× (1 20%) V short time. |
|
| input electric | three phase five line | three phase five line | three phase five line | |

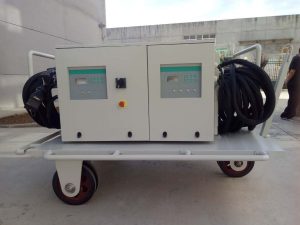

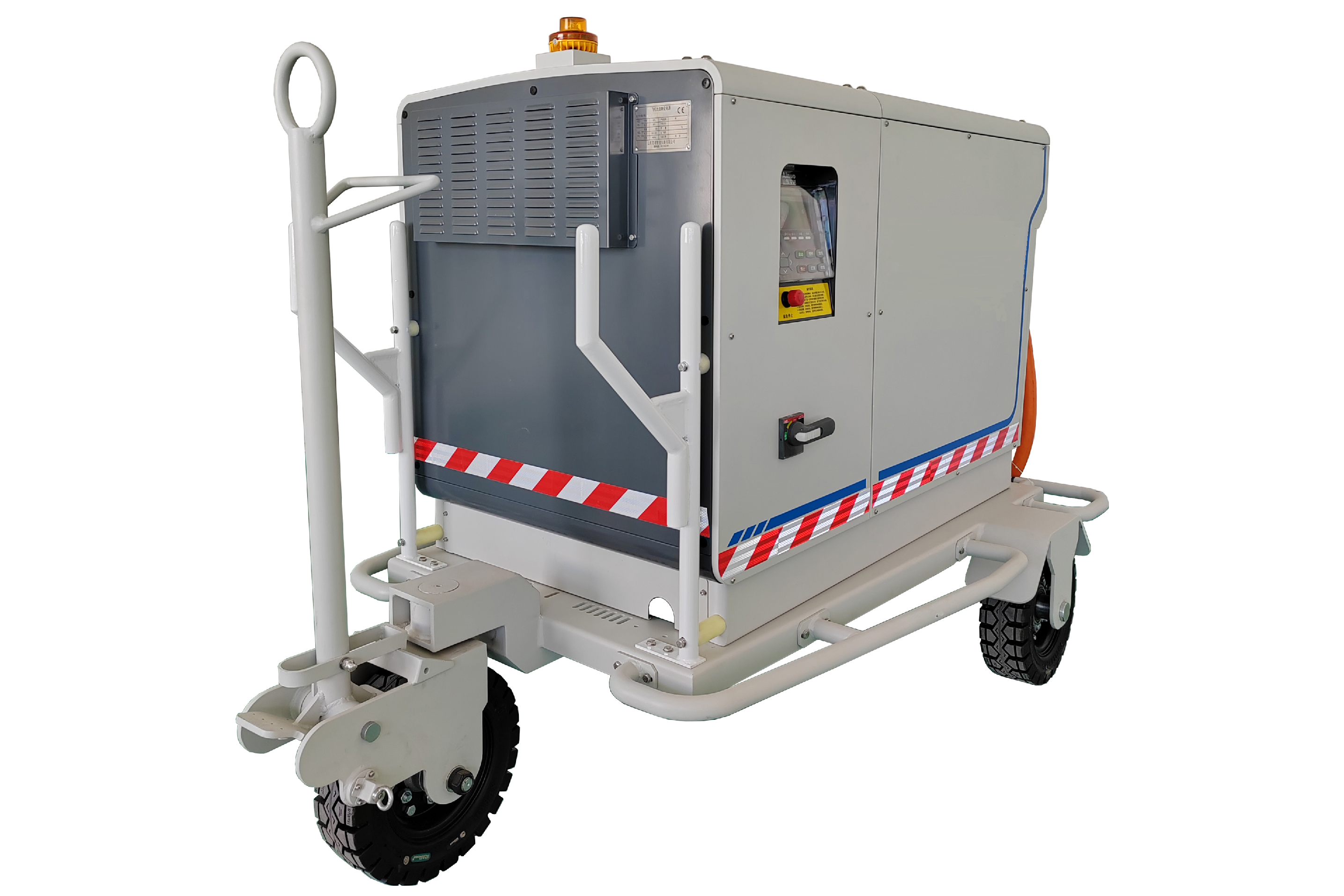

Ground Power Units(drag) |
||||
| Project | Performance index | |||
| AN90 | AN120 | AN180 | ||
| operation ambient temperature (℃) | comply with the requirements | comply with the requirements | comply with the requirements | |
| weight (kg) | 305 | 475 | 425 | |
| overall dimension (LxWxH) (mm) | 540×624×1103 | 890×625×1105 | 2008×1110×1385 | |
| noise (dB(A)) | ＜57. 1 | ＜57. 1 | ＜57. 1 | |
| levels ofprotection | comply with the requirements | comply with the requirements | comply with the requirements | |
| ACmain parameters and performance dates | rated voltage (V) | 115/200 | 115/200 | 115/200 |
| rated frequency (Hz) | 400 | 400 | 400 | |
| (A)<br/>rated current (A) | 261 | 348 | 521 | |
| (kVA)<br/>rate d power (kVA) | 90 | 120 | 120 | |
| overload capacity | 110%，60min； 125%，20min；150%，15min；200%，30. 8s；300%，10. 7s；400%，1. 6s |
125%，304s 150 %，11. 28s 200 %，2. 26s |
125%，304s 150 %，11. 28s 200 %，2. 26s |
|
| DCmain parameters and performance datas | rated current (A) | —— | —— | —— |
| contin uous working current (A) | —— | —— | —— | |
| 5-min overloadcurrent (A) | —— | —— | —— | |
| rated power (kW) | —— | —— | —— | |
| rated voltage (V) | —— | —— | —— | |
| other performance | input frequency (Hz) | 40~70 | 40~70 | 40~70 |
| input power factor | 0.99 | 0.99 | 0.99 | |
| (%)<br/>input efficiency (%) | 96.14 | 96.14 | 96.14 | |
| input voltage (V) | 285~475 | 285~475 | 285~475 | |
| input electric | Three-phase three-wire+PE | Three-phase three-wire+PE | Three-phase three-wire+PE | |
